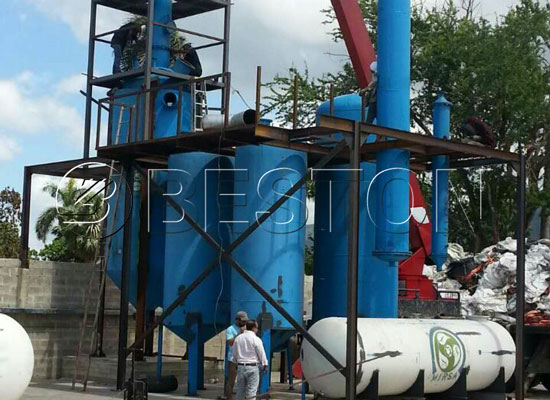

Beston crude oil refinery plant mainly consists of heating system, distillation system, dedusting system and electric control system, all of which play an important role in recycling waste oil materials or tyre/plastic pyrolysis oil.
Details about the oil refining machine:
At the first, the heating system is made up of the fuel oil tank, fuel burner and heating furnace. The heating system possesses many advantages, such as the high heating efficiency, low heat energy consumption… Besides, the supporting burner can control the input quality of heat energy, so as to ensure the stability of the whole system.
Then, the oil distillation system, which consists of the distillation reactor, refinery tower, heat exchange system, condenser system and oil storage. The raw oil material is heated and processed in the oil refining system. In addition, before the raw material entering the refining reactor, it will passes the heat exchange system to have a heat exchange. This kind of structure can largely increase the production efficiency and save more fuel. The raw material in the heating furnace will be heated circularly to reach the related temperature. The refinery tower with the unique structure largely improves the oil quality; the condenser system has adopted the design of tube condenser that can be easily opened at both ends, and it is also convenient for daily cleaning and maintenance.
Next, the dedusting system of the oil refining plant includes the lye tank, tower spray desulfurization and dedusting, draf fan. The system can not only make tail gas meet the international emission standards but also can use the spray lye to absorb the sulfur dioxide through the acid-base neutralization, and in this way, it can realize environmental protection.
Finally, the intelligent electric control system of oil refinery units is made up of digital display cabinet and the parameters of field acquisition, possessing the advantages that the parameters of temperature, pressure and liquid level can be displayed clearly in the digital display cabinet, so as to reduce the unnecessary danger and waste because of the human factor.
Classification of waste oil refinery machine – based on the operating methods:
The description of the BZJ series batching used oil refining plants mainly includes BZJ-6 and BZJ-10 models. The daily capacity of the batch waste oil refining equipment is 6t/d and 10 t/d respectively. The crude oil refinery machine can be operated in normal pressure and vacuum condition. The latest hot air heating system can increase the reactor’s life time for extra 1-2 years. Oil gas from reactor has already been purified by distillation tower before it goes into condenser system, and it has also been liquefied into light fuel oil. This kind of oil will be piped into deep purifying systems with acidity and alkaline cleaning devices as well as pressure filtering system. Then we get qualified diesel oil that can be used in engine and generators from the oil refinery process.
The specific information of continuous waste oil refining plant has three models: BZL-25, BZL-50 and BZL-100, and their daily capacities are 25t/d, 50t/d and 100 t/d respectively. The continuous crude oil refinery machine can be operated under the condition of normal pressure. The design of continuous oil refinery plants is based on the batch machines, so the major operating flows are same. The largest advantage of the continuous distillation machine is that it has larger processing capacities to get higher oil yields. So it is more suitable for the large scale industries.
|Working method||Batch||Semi-continuous||Fully continuous|
|Raw materials||Waste tire, plastic, rubber, oil sludge, medical waste|
|Reactor size||D2.2*L 5.1m||D2.8*L6.2 m||D2.8 *L7.1 m||L12.5*W2.2*H2.5m|
|Pattern||Horizontal & rotary||Not rotary type|
|Heating materials||Charcoal, wood, fuel oil, natural gas, LPG, etc.|
|Total power||24 kw/h||30 kw/h||54 kw/h||53.6kw/h||62kw/h||84kw/h|
|Floor area (L*W*H)||20*10*10 m||25*15*10 m||25*15*10 m||20*15*10m||33*15*10m||33*15*10m|
|Operating pressure||Normal pressure||Constant pressure|
|Cooling method||Water cooling|
|Service life||5-8 years|
