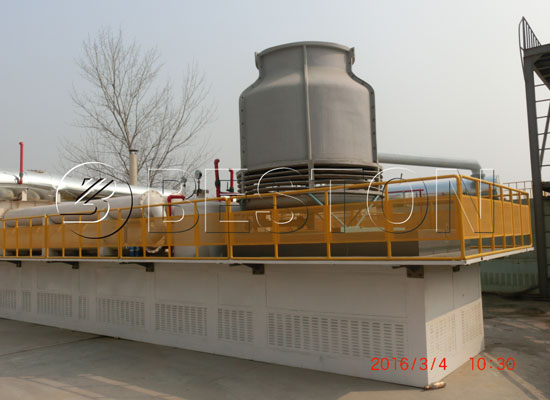

Medical Waste Pyrolysis Treatment Equipment

Medical Waste Pyrolysis Treatment Equipment

Technology introduction:

Beston Group comprehensive medical waste pyrolysis treatment equipment realizes the efficient and safe disposal and comprehensive recycling of medical waste through advanced classified collection system, transport storage system, disposal and utilization system. Compared with the traditional methods, it has some advantages of easy and convenient performance, efficient and safe, good handling effect and maximize resource.

medical waste
Medical waste treatment technology
Fuel oil from medical waste
Carbon black from medical waste

The medical waste treatment equipment firstly sorts and collects the medical waste, which is on the basis of the infectious waste, pathological waste, hazardous waste, medical waste and chemical waste through the classified collection system. Then seals the collected waste and transports to the plant’s metering system through the transportation storage system, after weighting, sending them into temporary warehouse storage top have the further sterilization.

Medical waste that has been disinfected and sterilized will be sent in to disposal system, and then puts the waste into pyrolysis reactor to have a high-temperature catalyze and pyrolysis. The combustible gas produced through the pyrolysis process will be filtrated, purified,and processed by the multistage separator, and the heavy oil component will be also separated and stored into oil tank while the light oil component will continue entering into condenser system to be further processed. The light oil component is condensed by condenser system, and the condensable gas turns into high-quality fuel oil while the other part will enter the combustible recycling system to be used as fuel for heating reactor through Beston unique safety hydroseal system.

Medical Waste Pyrolysis Treatment Equipment
Medical Waste Pyrolysis Treatment Equipment

The smoke generated in the process of pyrolysis passing through flue enters into the advanced powerful atomizing dedusting tower and the purifying system of industrial waste gas. By this method the waste gas without harmful components can meet the international emission standard.

Finally, the medical waste processed by high-temperature pyrolysis process can be converted into slag of pyrolysis besides the heavy oil and fuel oil. The slag passing through the magnetic separation system can be processed into waste metal, and the residual will be processed in a safe landfill after solidifying.

Technology characteristics:

Simple, convenient, pollution-free process

The medical waste pyrolysis plant manufactured by Beston Group has introduced the advanced pyrolysis technology. In the whole process, it does not use any chemical additive with toxic and hazardous waste. The waste gas and tail gas can be recycled and disposed through the advanced pyrolysis plant, and it needs not many complicate programs but disposes in the sealed high-temperature pyrolysis reactor. The whole operation is simple, convenient and pollution-free.

Semi-continuous medical waste pyrolysis plant
Semi-continuous medical waste pyrolysis plant
Model BLL-16
Daily capacity 16-20T
Working method Semi-continuous
Size of reactor D2.8 *L7.1 m
Pattern Horizontal & rotary
Floor area 25*15*10 m (L*W*H)
Total power 54 kw/h

Please feel free to give your inquiry in the form below. We will reply in 24 hours.

Name (required)
Email (required)
Phone
Country
Message

High efficiency, high return

Introducing the high-temperature pyrolysis method is not only easy and efficient but also the result can reach Log8 standard.

Automatic performance

The whole process use the advanced PLC control technology, including vacuum preheating control, warming, cooling, auto start and stop control, the time ans temperature control in the recycling program, waste liquid and waste cooling water of the disinfectant control. The pyrolysis system for waste medical is easier, safe, and efficient.

Maximize resource

The pyrolysis technology both efficiently makes the medical waste disposing reach the related standard and recycles the waste resource, which achieves the ideal effect as well as gets the fuel oil, metal and other resources.

Fully continuous medical waste treatment equipment
Fully continuous medical waste treatment equipment
Model BLL-30 BLL-40 BLL-50
Daily Capacity 30T 40T 50T
Working method Fully continuous
Size of reactor L12.5*W2.2*H2.5m
Pattern Not rotary type
Floor area 20*15*10m 33*15*10m 33*15*10m
Total power 53.6kw/h 62kw/h 84kw/h



Lower running cost

The pyrolysis treatment process is easy, without many complicated processing devices. Either the construction cost or performance cost is quite lower. What’s more, this kind of technology can not only recycle resources, but also make more economical efficiency.

Obvious reduction effect

The medical waste treatment technology has a safe treatment to medical waste, meanwhile, it can also efficiently and comprehensively recycle the waste, then turn the waste into fuel oil and metal, which can be obvious on the aspect of reduction in capacity.

Basic Parameter:

Item Details
Model BLL-16 BLL-30 BLL-40 BLL-50
Daily capacity 20T 30T 40T 50T
Working method Semi-continuous Fully continuous
Raw materials Waste tire, plastic, rubber, oil sludge, medical waste
Reactor size D2.8 *L7.1 m L12.5*W2.2*H2.5m
Pattern Horizontal & rotary Not rotary type
Heating materials Charcoal, wood, fuel oil, natural gas, LPG, etc.
Total power 54 kw/h 53.6kw/h 62kw/h 84kw/h
Service life 5-8 years

Main processing systems:

* Collection and storage system: the system is made based on the relevant provision and standards of the international medical waste treatment. It mainly includes collection, transportation, measure, loading, temporary storage and disinfection of the medical waste.

* High-temperature pyrolysis system: the pyrolysis system is the major product of Beston Group which possess the characteristics of safe, energy-saving, environmental production and great economic efficiency. Our pyrolysis plants have been exported to many countries and areas. Besides, the medical waste pyrolysis treatment system mainly contains some assistant plants, such as feeder, high-temperature pyrolysis reactor of medical waste, discharging machine, condenser system, fuel receiving system, exhaust treatment system, electrical control system, waste disposal system.

BLL-16 medical waste treatment plant

* Exhaust gas purification system: the system is mainly made of high efficiency atomization, dedusting tower and other Beston major products. It is not only high-efficiency and durable, but also has low cost, convenient management and low maintain rate.

* Slag treatment system: it has advanced, perfect and harmless devices to collect residue, in addition, this system can efficiently dispose the slag to prevent the secondary pollution.

* Instrument and automatic control system: the whole process adopts the PLC control technology and precision instrument, so that it can complete the auto control and accurate monitor in the whole process.

* Emergency treatment and safe proof-explosion system: in the whole process, it can supervise the pressure and temperature from multiple aspect video monitor system, and it can automatically alarm and efficiently dispose the situation when it occurs the abnormal phenomenon, which can guarantee the safety in the process from beginning to end.
