Tyre Pyrolysis Oil Distillation Process

Tyre Pyrolysis Oil Distillation Process

The pyrolysis oil distillation plant can be used for converting all kinds of pyrolysis oil, such as tyre, rubber and plastic pyrolysis oil, etc., into qualified diesel or gasoline. The distillation of these pyrolysis oil can be operated in normal pressure condition and vacuum pressure condition.

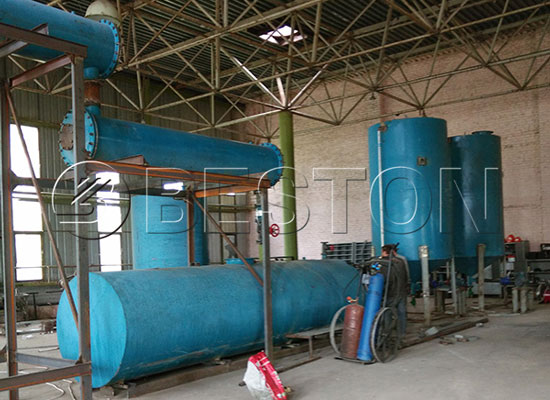

Tyre Pyrolysis Oil Distillation Process
Tyre Pyrolysis Oil Distillation Process

Take the tyre pyrolysis oil distillation process for example, the oil will first be pumped to the reactor and then it will start to boil and evaporate when it is heated to the working temperature. Oil gas from reactor has already been purified by distillation tower before it gets into condensers and liquefied into light fuel oil. This kind of oil will be piped into deep purifying systems with acidity and alkaline cleaning devices as well as pressure filtering system. When the whole distillation process is over, we will get qualified diesel oil or gasoline, the performance indexes (density, viscosity, acid value) of which can meet new oil’s data.

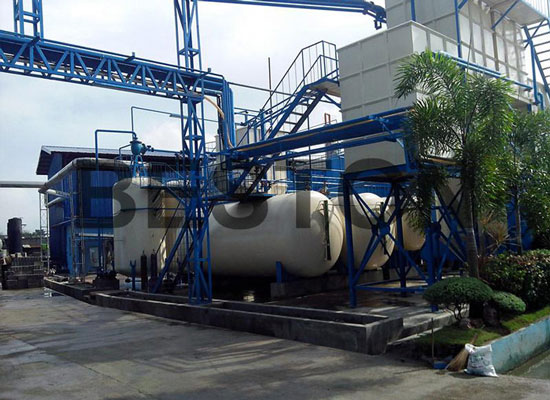

Tyre Oil Distillation Process
Tyre Oil Distillation Process

Main features and advantages of the tyre oil distillation plant:

1. Automatic feeding and discharging systems, which makes the waste tires oil refining equipment easy to operate and can greatly save manpower.

2. Totally sealed distillation reactor and distillation tower to avoid gas leakage and ensure no-pollution.

3. Latest hot air heating system, which can prolong the service life of the reactor for extra 1-2 years.

4. New-type tubular condensers, larger cooling area, better cooling effect and higher oil yield.

5. Equipped with safety valves, automatic alarming system, anti-explosion valve, which will guarantee the tyre pyrolysis oil distillation plant 100% safety in the working process.

6. Adopting three-layer dedusting system to cleanse the exhaust gas, the released gas will reach European pollution control standards.
