charcoal production equipment

Charcoal Making Machine for Sale

Beston charcoal making machine for sale has been exported to many counties since its launching in the market, so we have possessed rich exporting experiences. The charcoal making equipment mainly uses the municipal solid waste, sewage sludge and biomass materials including coconut shell, wood, sawdust, etc. as raw materials to process charcoal for turning waste to energy.

Charcoal Making Machine for Sale
Charcoal Making Machine for Sale
charcoal maker machine
Charcoal maker machine

The production flows of charcoal carbonization process

Firstly, the raw materials will be poured into feeding device that is installed in the top of furnace through belt conveyor, and then enter charcoal carbonization furnace through the conveyor;

Then the materials will be processed uniformly through the internal feeding device, and when the furnace has enough material, we can stop the conveyor to feed;

Next, what we should do is to put the ignition device in the bottom of the carbonization furnace; when the raw material has been fired uniformly, we should extinguish the fire source and turn off the ignition hole;

Then we should operate the blowers which include two model, firstly, we should adjust the speed of blower1 to appropriate speed, and then is the blower2;

After that we can light the gas the its concentration of burner, and we should also adjust the blower2 based on the condition of burner to have a enough heat energy in the whole process.

With the consumption of materials in furnace, the feeding device can automatically feed the materials as soon as the raw materials in the furnace are less than the specific volume, while it will stop in time when the raw materials are enough. In this way, it can ensure stability and safety of the whole charcoal making process.

Charcoal making machine video

Unique design of Beston charcoal making machine for sale

No 1. The security of charcoal manufacturing machine

Beston charcoal making plant for sale has introduced six steps to ensure the safety and stability in the production process.

First of all, the PLC control system which can be designed according to the customers’ requirements to realize the fully separator of operator and machines, which can make the whole production process become easier and more convenient.

The second is the automatic displayer of temperature and pressure. This part can clearly provide the pressure of operation and temperature of furnace, when the data is over the specific parameter, it will alarm automatically, which can avoid the large dangerous accidents.

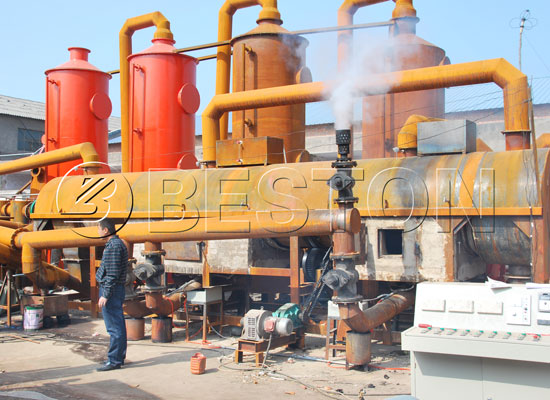

charcoal production equipment
Charcoal production equipment

Thirdly, the casing which is installed on the surface of charcoal carbonization furnace is to protect the furnace and add visual effects. It also has a function to protect workers from scald.

Next is the distribute box and power supply section have a standardized control system to ensure safety.

The professional dedusting system which includes four filters purification systems has a completely cleaning to ensure the pipe unblocked.

The last is the sealing system without oxygen, and the well sealing device can prevent the oxygen from connecting with furnace.

charcoal making equipment
Charcoal making equipment for processing different materials

No 2. The environmental protection efficiency of Beston charcoal production plant

Dedusting system can eliminate the tail gas efficiently to meet the discharge standard and achieve the green production. And the recycling of combustible gas can not only save energy but also reprocess the harmful components to achieve the international emission standard.

Charcoal making machine for sale has been prepared for exporting to Ukraine

charcoal making machine china
charcoal production plant
charcoal powder making machine

Model BST-05 BST-10 BST-20 BST-30
Hourly Feeding Capacity 500kg 0.8-1 Ton 1.5-2 Tons 2.5-3 Tons
Working Method Continuous
Raw Materials 1. All kinds of biomass waste, such as sawdust, coconut shells, olive shells, palm shells, bamboo,etc.
2. Civil sludge, municipal sludge, industrial sludge,etc
3. MSW
Reactor Size Φ800 Φ1000 Φ1300 Φ1700
Pattern Horizontal & Rotary
Heating Materials Charcoal, Wood, diesel, Natural Gas, LPG, Biomass, etc.
Total Power 40kw/h 55kw/h 60kw/h 72kw/h
Floor Area (L*W*H) 30m*15m*7m 35*15*7m 45*15*10m 50*15*10m
Operating Pressure Constant Pressure
Cooling Method Recycling Water Cooling
Life Span 5-8 Years
