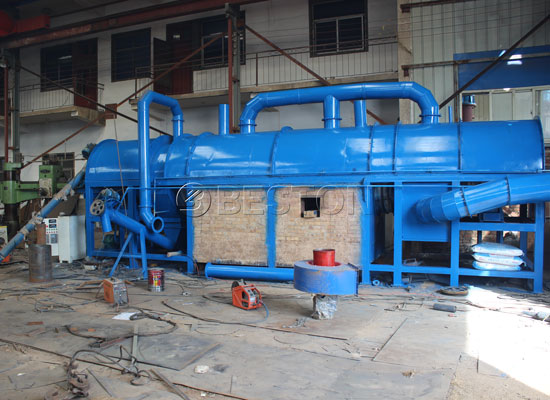

Coconnut Shell Charcoal Making Machine

Coconnut Shell Charcoal Making Machine

Coconut shell has high hardness and strong adsorptivity, and it also can be used to purity the sewage water and odor. But by this method, it can not really realize its value. Coconut shell is one of biomass materials which can be processed into charcoal, with high caloric value to be used as fuel directly.

Coconnut Shell Charcoal Making Machine
Coconnut Shell Charcoal Making Machine
charcoal from coconut shell
Charcoal from coconut shell

Beston coconut shell charcoal making machine is a kind of environmental protection plant, which uses waste biomass materials as raw materials, such as rice husk, palm shell, bamboo, sawdust, etc. In addition, we also has broken through the traditional design and adopted the foreign advanced technology, which is the domestic initiate .

Details of coconut charcoal making machine

Firstly, the temperature is an important factor to ensure the normal operation of coconut shell charcoal machinery. In the whole coconut shell charcoal making process, it should keep about 400-600 degree centigrade. Beston coconut shell charcoal production equipment can generate the combustible gas to achieve the continuous production by means of igniting furnace for once. Because of the high hardness, coconut shell is not easy to destroy after carbonization, which is rare in the market. Beston continuous carbonization furnace guarantees the raw materials can be processed uniformly, so as to produce the charcoal with high quality.

Beston coconut shell powder making machine not only solves the problem of environmental pollution caused by the dense smoke in the process of the common carbonizing equipment, but also handles the heat source, which fully achieves the self-sufficient, so as to promote the continuity and economy of the plant.

Better cooling system of Beston coconut shell charcoal machine

Because the temperature of charcoal which has processed by the carbonizer still keeps about 200 degree centigrade, on the one hand, it is dangerous to discharge directly; on the other hand, the power with high temperature contacting with the oxygen will burn naturally. So the temperature of charcoal should keep below 30 degree centigrade before discharging. The discharging system of Beston coconut charcoal machine is made up of wind closing device and cooling system which has introduced the multiple-layers screw cooling structure. The wind closing device can intercept the air to enter carbonization furnace, while the cooling system can utilize the cooling water to continuously reduce the temperature of charcoal.

coconut charcoal making machine
coconut shell charcoal machinery
coconut shell powder making machine

Beston Group provides the best carbonation machines for you

1. Beston group has advanced technology and professional technicians, so that we can provide the satisfying products for all the customers;

2. Our products are both environmental protection and economy;

3. We have spent several years in researching and developing carbonizer machine, and also participated in many related enterprises and manufacturers to guide and train the carbonized technology,

4. We also provide perfect pre-sale and after-sales service for our customers to eliminate the unnecessary trouble.

Model BST-05 BST-10 BST-20 BST-30
Hourly Feeding Capacity 500kg 0.8-1 Ton 1.5-2 Tons 2.5-3 Tons
Working Method Continuous
Raw Materials 1. All kinds of biomass waste, such as sawdust, coconut shells, olive shells, palm shells, bamboo,etc.
2. Civil sludge, municipal sludge, industrial sludge,etc
3. MSW
Reactor Size Φ800 Φ1000 Φ1300 Φ1700
Pattern Horizontal & Rotary
Heating Materials Charcoal, Wood, diesel, Natural Gas, LPG, Biomass, etc.
Total Power 40kw/h 55kw/h 60kw/h 72kw/h
Floor Area (L*W*H) 30m*15m*7m 35*15*7m 45*15*10m 50*15*10m
Operating Pressure Constant Pressure
Cooling Method Recycling Water Cooling
Life Span 5-8 Years
