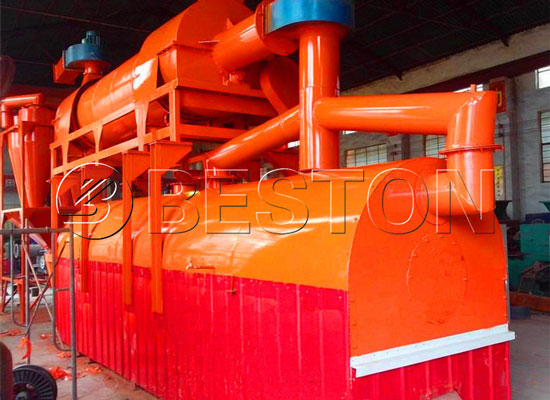

Wood Charcoal Making Machine

Wood Charcoal Making Machine

Requirement on making charcoal from wood

Wood is also the most common material to produce charcoal. Firstly, we should have a pre-treatment to crack the wood into small particles, which is to carbonize the raw materials uniformly and improve the quality of the final products. In addition, if the moisture of wood is over 20%, the wood charcoal making machine for sale should be equipped with dryer system to eliminate the extra moisture, which can improve the quality and value of products. In general, the raw material has been thoroughly separated by the waste sorting machine, so that the raw material is single to make sure the purity of the finished products.

Wood Charcoal Making Machine
Wood Charcoal Making Machine for Sale
charcoal from wood
Charcoal from wood

Related information of wood chips charcoal making machine

Wood charcoal machine also follows the principle of heating in high temperature which is usually controlled between 400 degree centigrade and 600 degree centigrade, and the whole operation process has a short recycling period that generally lasts 15 minutes, so as to highly increase the working efficiency. The wood pyrolysis machines also have introduced the unique continuous working pattern that can not only raise working efficiency but also save more cost. At the beginning of operation flows, we usually use coal or natural gas as fuel to heat the wood carbonization furnace, but after several minutes, the combustible gas will generate, which can be continuously recycled to heat furnace. What’s more, the combustible also has the high burning value and can realize the heat recycling to ensure the machine running continuously 24 hours a day, without a stop. Moreover, we should mention the final products which include the charcoal, combustible gas, wood vinegar and tar, all of which can be used as fuel or chemical materials, with wide applications in our life or industry. If you want to learn more details about how to make charcoal from wood, please chat with us online or directly send email to us.

Dust removal system
Dust removal system
Spray tower
Spray tower

Installation of charcoal form wood machine

Before the wood carbonization plant leaves the factory, all the parts of the plant, including the transmission unit, should have assembled together so as to easily integral lifting. For the users whose installation conditions are limited, we can advise to use fission lifting. When assembling, please make sure that the input axis of reducer should keep concentric or parallel with the motor shift and its output should keep concentric or parallel with the gearbox. After assembling these, you need to turn on the input axis of reducer with hands to make the gearbox tuning several rounds smoothly, then fix the relative position of electric machinery, reducer and gearbox. Finally after fixing the mainframe, adjust the relative position of carrier gear and gear ring of main machine (mainly examining and adjusting the tooth surface contact, tooth space and so on). Especially notice that the fixation of the bottom of the gearbox must be gears. After assembling parts of the wood carboniziation equipment accurately, then assemble the draft fan, water conduits, air ducts and other external equipment. The final step is the electric control system, which should be put in the place with little dust and keep a certain distance with hot-blast stove of main machine. When all the steps have been finished, we will arrange our professional technicians to have a adjustment to ensure the wood charcoal making machines can be operated normally and smoothly.

Model BST-05 BST-10 BST-20 BST-30
Hourly Feeding Capacity 500kg 0.8-1 Ton 1.5-2 Tons 2.5-3 Tons
Working Method Continuous
Raw Materials 1. All kinds of biomass waste, such as sawdust, coconut shells, olive shells, palm shells, bamboo,etc.
2. Civil sludge, municipal sludge, industrial sludge,etc
3. MSW
Reactor Size Φ800 Φ1000 Φ1300 Φ1700
Pattern Horizontal & Rotary
Heating Materials Charcoal, Wood, diesel, Natural Gas, LPG, Biomass, etc.
Total Power 40kw/h 55kw/h 60kw/h 72kw/h
Floor Area (L*W*H) 30m*15m*7m 35*15*7m 45*15*10m 50*15*10m
Operating Pressure Constant Pressure
Cooling Method Recycling Water Cooling
Life Span 5-8 Years
